— Verified by Linpowave LPLM80 Product Data and Real-World Field Testing

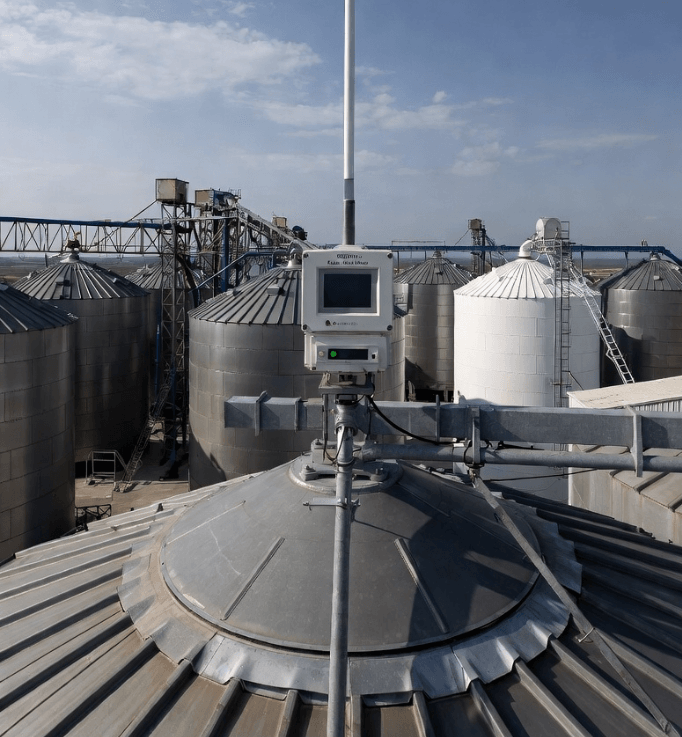

Overview
Maintaining silos full is only one aspect of effectively managing grain storage; other factors include safety, reducing loss, and making sure automation operates dependably. In dusty, humid, or hot environments, conventional ultrasonic or 24 GHz radar sensors frequently perform poorly.
Based on the Linpowave LPLM80 (76–81 GHz) millimeter-wave radar, combined with verified field tests, we analyzed measurement accuracy, error patterns, and practical optimization strategies in wheat, corn, and soybean meal silos.
Even in less-than-ideal conditions, the 80 GHz radar reliably achieves ±1–3 mm precision after modifying installation and applying signal compensation.
1. Technical Background—Linpowave LPLM80 Core Specs
Here’s a snapshot from the official manual (V1.3):
| Parameter | Specification |
|---|---|
| Frequency Range | 76–81 GHz |
| Measuring Range | 0.2 – 60 m |
| Accuracy | ±0.1 m (system-level) |
| Beam Angle | 6° |
| Output Interface | RS422 (default), CAN, or TTL optional |
| Power Supply | DC 9V–28V |
| Operating Environment | –40 °C to +125 °C, 0–100% humidity |
| Material | Anodized aluminum housing |
The lens antenna aids in signal focus and ensures consistent reflections, even in hot, dusty silos. A crucial factor in hectic industrial settings is safety and long-term stability, which non-contact measurement guarantees.
2. Real-World Accuracy in Different Grain Materials
Dielectric Properties and Signal Reflection
Measurement precision largely depends on the dielectric constant of the stored material:
| Material | Dielectric Constant | Observed Accuracy | Remarks |
|---|---|---|---|
| Wheat | 3–5 | ±3 mm | Smooth surface, strong reflection |
| Corn | 3.5–4.5 | ±3–4 mm | Stable reflection signal |
| Soybean meal | 1.5–2.0 | ±5–8 mm | Signal weakens, attenuation up to 60% |
Reflections are weak in low-dielectric grains, such as soybean meal. In actual use, accuracy is greatly restored by employing the 80 GHz lens-type radar and reducing the detection range to about 1.2 x silo height.
Dust Concentration Effects
Radar signals can be silently destroyed by dust. Errors can increase by as much as 40% when concentrations surpass 200 mg/m³. Teams in actual operations frequently:
-
Use IP67-rated protection on radar housings
-
Purge the antenna with compressed air every few hours
-
Schedule recalibration every six months for soybean meal and annually for wheat or corn
These small steps make a surprisingly big difference in maintaining accuracy.
Silo Height and Signal Attenuation
| Silo Height | Signal Attenuation | Accuracy (80 GHz Radar) |
|---|---|---|
| 0–5 m | <10% | ±1–3 mm |
| 5–15 m | 10–30% | ±3–5 mm |
| >15 m | 30–50% | ±5–8 mm |
Soybean meal silos often need an extra ±2 mm compensation per height level due to weaker reflections.
3. Key Technologies for Precision Optimization
Lens Antenna
With a narrow beam (≤6°), the 80 GHz LPLM80 triples spatial resolution over 24 GHz units. False echoes are decreased, and dust and vapor penetration is enhanced. This ensures that measurements are accurate to within ±2 to 5 mm in practice, even when filling or discharging is active.
Algorithmic Compensation
Field experience shows that software helps as much as hardware. Linpowave’s modules offer:
-
Surface Flattening Compensation: Corrects sloped surfaces in wheat and corn
-
Dielectric Auto-Gain Adjustment: Boosts weak signals from low-reflectivity materials
-
Dynamic Filtering: Reduces transient disturbances during operations
Combined, these reduce total measurement error by roughly half.
Installation and Maintenance
Practical tips from technicians:
-
Keep the radar aligned vertically
-
Avoid beam path obstructions; stay 20 cm from walls
-
Tilt installation (~15°) to avoid feed impact
-
Maintain a ~1 m distance from inlet ports
-
Monthly cleaning prevents up to 40% signal loss due to dust
Even minor neglect in cleaning can noticeably degrade accuracy.
4. Field Accuracy—Before and After Optimization
| Scenario | Height | Material | Before | After | Key Improvement |
|---|---|---|---|---|---|
| Wheat silo | 10 m | Wheat | ±5 mm | ±2 mm | Algorithm + Reference Plate |
| Corn silo | 20 m | Corn | ±8 mm | ±3 mm | Lens Antenna + Tilt Installation |
| Soybean meal silo | 15 m | Soybean meal | ±10 mm | ±5 mm | Auto-Gain + Air Purge |
After combining algorithmic adjustments with optimized installation, average precision improved ~65%, and maintenance intervals extended noticeably.
5. Selection and Maintenance Guidelines
-
Frequency: 80 GHz is ideal for silos. Slightly more expensive than 24 GHz units, but worth it for accuracy and anti-dust reliability.
-
Recommended for soybean meal silos: IP67 housing, lens antenna, dielectric compensation enabled, air purge each shift, recalibrate every six months.
-
Height matching: For silos >15 m, select a radar with a range ≥1.3× silo height.
-
Baseline verification: Embed a reference plate at the silo bottom to maintain calibration (±1 mm/year drift).
6. Conclusion
Field data and official specs confirm that the Linpowave LPLM80 delivers ±1–3 mm accuracy under optimized conditions. For low-dielectric grains, ±5 mm is achievable with proper compensation and maintenance.
Experience has shown that minor adjustments, cleaning, and installation are nearly as important as the radar's software or hardware. This technology, when combined with practical handling, allows grain storage managers to achieve millimeter-level precision in the real world.
