Stealth is never about making a target completely invisible to radar; it is about pushing the echo down, scattering it apart, and scrambling it. What radar cross section (RCS) measurement does is put numbers on that — exactly how much was pushed down, where it was scattered, and how scrambled it became. The five terms below happen to form one complete chain: measure it accurately first, then look closely, understand why the materials reflect the way they do, squeeze one more layer of information out of polarization, and finally store all of it in a library you can call on again and again.

1 RCS Measurement: It All Starts with Measuring Accurately

Without trustworthy measurements, everything that follows is built on sand. The core of RCS measurement is obtaining a target's backscattered strength relative to the incident wave in a controlled environment. The unit is usually square meters (m²), but engineers prefer dBsm, because it comfortably spans the enormous range from a fighter's tens of square meters down to a single screw's tiny return.

In practice it is nothing like "just point an antenna and shine a light." In a compact range or on an outdoor range, the target sits on a turntable and is swept through every aspect angle; the frequency band often covers 2–40 GHz and beyond. Background must be removed and the system calibrated with reference targets such as metal spheres and standard corner reflectors — otherwise a little leakage from the walls, the support, or the ground will quietly creep into your results. We have seen far too many "beautiful curves that could not be reproduced," and the fault was almost always in calibration and background control.

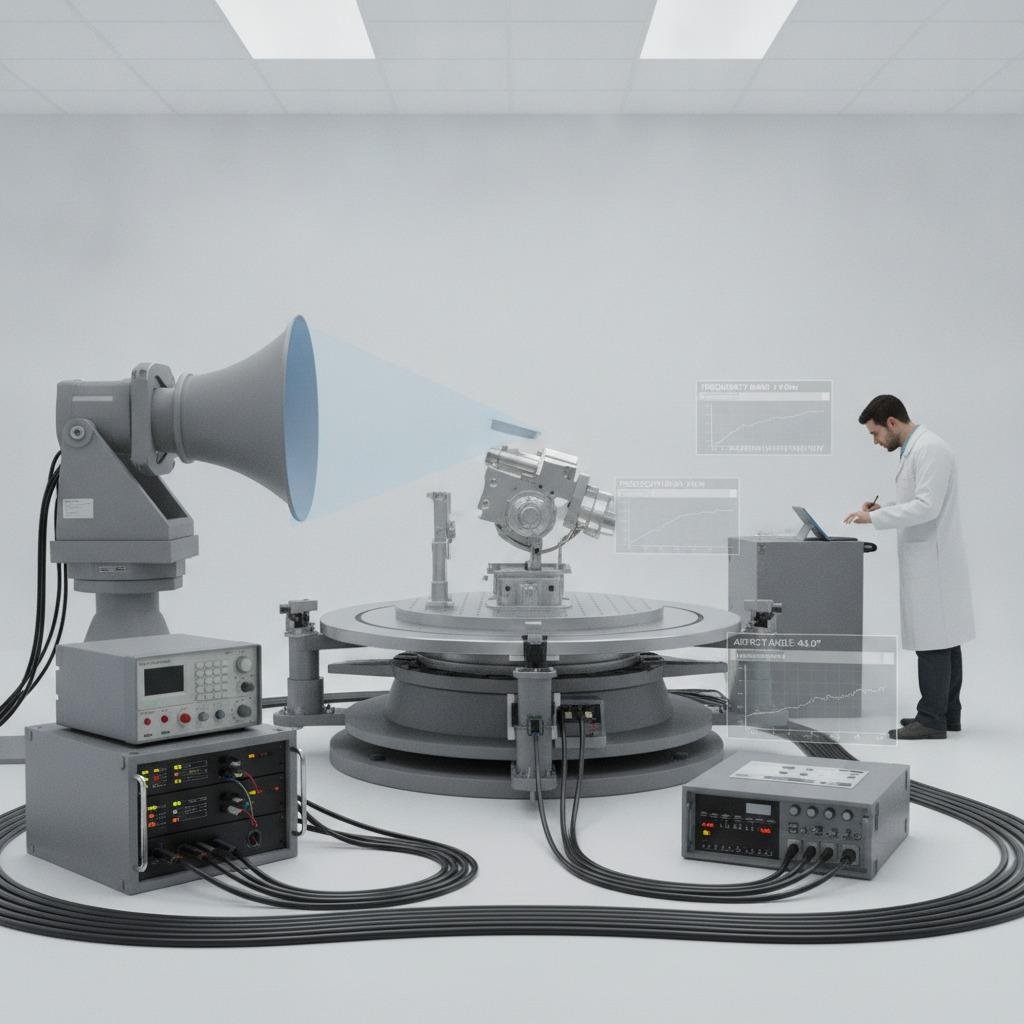

Figure 1. RCS testing in a compact range / outdoor range: turntable sweep across all aspect angles, where background control and calibration decide whether the data can be trusted.

One thing worth stating plainly: RCS is not the target's geometric area. It is an equivalent quantity that rolls shape, material, attitude, frequency, and polarization into a single number. Get it measured accurately, and everything else becomes possible.

2 Micro-RCS Signature Analysis: What Really Pays Off Is Knowing Which Part Is Reflecting

A total RCS value is only a sum, and that is not enough for a designer or an operator. Micro-RCS signature analysis does the opposite — it back-projects the total echo onto local scattering sources in space, the so-called scattering centers. On an aircraft, the bright spots are rarely the skin; they are usually the engine intake cavity, the wing leading edge, the radome seam, even a row of rivets.

The usual tools are ISAR (inverse synthetic aperture radar) imagery and range-Doppler processing: they pull the target apart in range and cross-range so each scattering center lands on a point in the image. Combined with high-frequency approximations for edges, cavities, and curved surfaces, an engineer can point at the picture and say, "this is 3 dB over, we need to reshape it." This step serves both stealth shaping and defect / anomaly detection, and it also picks out the most discriminative features for target-recognition algorithms.

Figure 2. Decomposing the total echo into millimeter-scale scattering sources: edges, cavities, and seams show up as bright points in the 2-D image.

3 Target Reflectivity Characterization: Why Different Parts of the Same Airframe Differ So Much

The answer is usually the material. Target reflectivity characterization quantifies how strongly a surface reflects electromagnetic waves, handing the designer a ruler to compare against. A metal surface reflects strongly, its reflectivity close to 1, on the order of 0 dB. A spot coated with radar-absorbing material (RAM) can push the echo down to around −30 dB. Carbon-fiber composite sits in between and shifts noticeably with layup, thickness, and incident angle.

This step watches more than a single frequency point: change the incident angle and the specular direction moves; once surface roughness approaches the wavelength, scattering tips from specular to diffuse; thicken or thin the coating and the absorption peak drifts. Map these behaviors out and stealth design stops being guesswork and becomes predictable and iterable.

Figure 3. Reflectivity of metal, composite, and RAM versus frequency: material is the underlying switch behind RCS.

4 Polarimetric Scattering Analysis: Using One Polarization Alone Is Like Seeing a Solid Object with One Eye

Most of the measurements above assume one polarization (say, horizontal transmit / horizontal receive, HH). But a real target is picky about polarization: it converts part of the incident wave into cross-polarized components (HV, VH), a process called depolarization. The cross-polarized part carries fingerprints — the target's shape, orientation, even whether it is a conductor or a dielectric — that co-polarization alone cannot show.

In practice we lay down four bases (HH, HV, VH, VV) into a scattering matrix, then map it onto the Poincaré sphere to describe the target's polarization response. The payoff is concrete: pick a man-made target out of clutter, tell metal from dielectric, and improve classification and anti-jamming. In one phrase, polarization turns a target from "a single brightness" into "a set of distinguishable features."

Figure 4. After the incident wave passes the target it depolarizes; the scattering matrix and polarization response reveal what co-polarization hides.

5 Signature Database Construction: One Measurement Is Data, Ten Thousand Become Capability

A single measurement and report lose value over time; store them as a library and the value compounds. The idea behind a signature database is simple: every record carries multi-dimensional metadata — platform type / frequency band / polarization basis / aspect angle / material tag — together with its RCS curve, 2-D image, and polarization matrix. Then retrieval, comparison, and training all become possible.

Take an example: a full-aspect RCS sphere goes straight into the library, and when an in-service asset is scanned you can immediately compare it against the historical baseline and ask "did something change?" Recognition algorithms stop hunting for samples and pull them on demand; simulation models can be fed real signatures back to calibrate and correct themselves. The bigger and cleaner the library, the easier every downstream step becomes.

Figure 5. A signature library organized by multi-dimensional tags turns each measurement into an asset you can retrieve, compare, and train on.

We Turn These Five Pieces Into One Chain

Taken separately, these are five technologies; brought together, they become a deployable target-signature capability. Our RCSense Target-Signature Measurement and Analysis Platform strings them into one closed loop of "measurement hardware + analysis software + signature library," covering the full path from chamber calibration to signature archiving:

Measure accurately	Compact-range / outdoor RCS measurement with full-aspect-angle sweep and metal-sphere calibration; results are reproducible.
Look closely	Micro-RCS and ISAR 2-D imagery that automatically locate scattering centers such as edges, cavities, and seams.
Explain the material	Reflectivity characterization and frequency / incident-angle sweeps that give stealth shaping a quantitative basis.
Squeeze one more layer	Full-polarimetric scattering matrix and depolarization analysis that extract shape and material fingerprints.
Store it as a library	A multi-tag signature library that supports retrieval, comparison, and recognition-algorithm training.
Close the loop	Real signatures fed back into simulation; in-service assets compared against baseline; capability accumulates continuously.

Book a measurement demo · Download the RCS Target-Signature white paper

At the end of the day, the point of RCS measurement is not a pretty number; it is moving "stealth and counter-stealth" from experience toward something measurable. Measure accurately, look closely, understand the material, use polarization fully, and store it as a library — once that chain runs, even against the quietest target you hold a card you can play again and again.
